华为HCNP认证综合实验单线路V1.0,文章为路由交换阶段。

Section 1交换部分


Section 1.1创建VLAN与接口配置
Core-01、Core-02

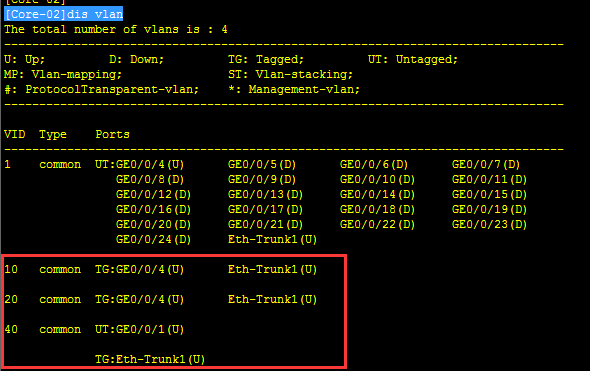

vlan batch 10 20 30 40         /*批量创建VLAN*/
#
interface GigabitEthernet0/0/4
 port link-type trunk
 port trunk allow-pass vlan 10 20        /*这个trunk接口只允许通过VLAN10与20 */
#
/*此步需要在配置完链路捆绑后配置*/
interface Eth-Trunk1
 port link-type trunk
 port trunk allow-pass vlan 2 to 4094        /* 这个trunk接口允许通过所有VLAN*/

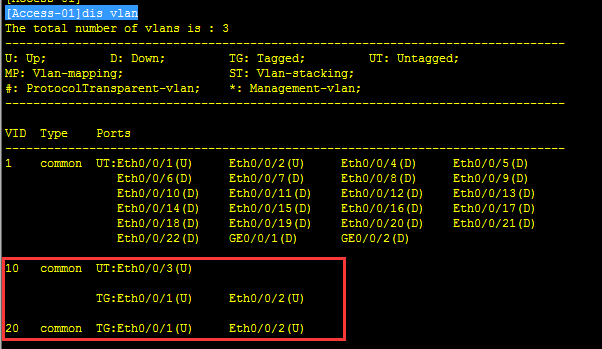

Access-01:
interface Ethernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 10 20
#
interface Ethernet0/0/2
 port link-type trunk
 port trunk allow-pass vlan 2 to 4094
#
interface Ethernet0/0/3
 port link-type access
 port default vlan 10
 stp edged-port enable /*配置连接PC的接口为边缘端口,加速快速转发*/

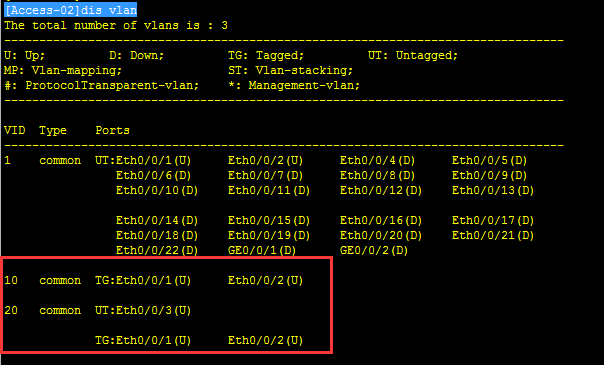

Access-02:
interface Ethernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 10 20
#
interface Ethernet0/0/2
 port link-type trunk
 port trunk allow-pass vlan 10 20
#
interface Ethernet0/0/3
 port link-type access
 port default vlan 20
 stp edged-port enable  /*配置连接PC的接口为边缘端口,加速快速转发*/






Section 1.3链路捆绑

Core-01、Core-02

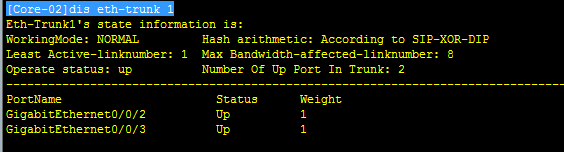

interface Eth-Trunk1        /*创建虚拟捆绑接口,此后所有配置都做这个接口上 */
interface GigabitEthernet0/0/2
 eth-trunk 1        /*将此物理接口划分到捆绑接口,以后这个接口不做任何单独操作 */
#
interface GigabitEthernet0/0/3
 eth-trunk 1

Section 1.4MSTP生成树
Core-01、Core-02、Access-01、Access-02:
stp region-configuration        /* 生成树相关配置,所有交换机都要配置*/
 region-name h3c        /* 域名一定要一样*/
 revision-level 1

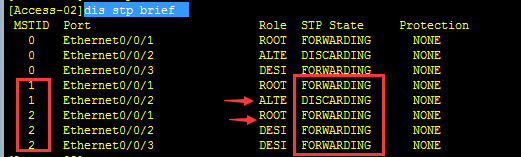

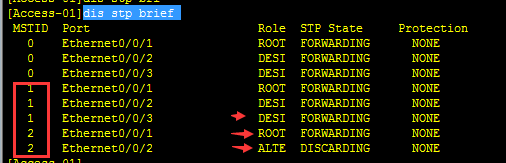

 instance 1 vlan 1 10        /* 将VLAN1与VLAN10划分到实例1中*/
 instance 2 vlan 20        /*将VLAN1与VLAN20划分到实例2中*/
 active region-configuration        /*激活前面的配置 */

Core-01:

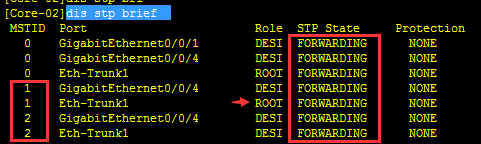

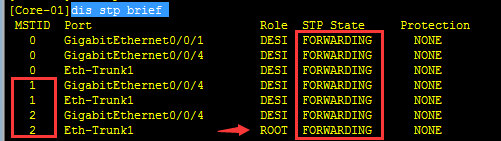

stp instance 1 root primary        /*配置Core-01为实例1的主根,实例2的备根 */
stp instance 2 root secondary

Core-02:
stp instance 2 root primary        /* 配置Core-02为实例2的主根,实例1的备根*/
stp instance 1 root secondary
