【1-10】10道思科CCNA考前测试题

更新时间:2021年10月14日   作者:spoto   标签(Tag):

QUESTION 1

Which two technologies can combine multiple physical switches into one logical switch? (Choose two.)
以下哪两种技术可以将多个物理交换机组合为一个逻辑交换机? (选择两个。)
A.   VRRP
B.   StackWise
C.   GLBP
D.   HSRP
E.   VSS

Correct Answer: BE
解析:B:堆叠;E:虚拟交换系统
堆叠是指将一台以上的交换机组合起来共同工作,以便在有限的空间内提供尽可能多的端口,扩展网络容量。
VSS是一种网络系统虚拟化技术,可将两台交换机组合为单一虚拟交换机,从而提高运营效率、增强不间断通信。



QUESTION 2

Which plane handles switching traffic through a Cisco router?
思科路由器转发数据流量使用的是以下哪个平面?
A.   control
B.   performance
C.   management
D.   data

  Correct Answer: D
解析:D:数据平面



QUESTION 4

Which command must you enter to enable OSPFV2 in an IPV4 network?
在IPV4网络中,以下哪个命令能够启用OSPFV2?
A.   ip ospf hello-interval seconds
B.   router ospfv2 process-id
C.   router ospf value
D.   router ospf process-id

Correct Answer: D





QUESTION 5

Which command should you enter to configure a single port to bypass the spanning-tree Forward and Delay timers?
以下哪个命令可以使单个端口绕过生成树的Forward和Delay定时器?
A.   spanning-tree portfast bpdufiter default
B.   spanning-tree portfast default
C.   spanning-tree portfast
D.   spanning-tree portfast bpduguard default

Correct Answer: C
解析:在STP中,port有5个状态:disable、blocking、listening、learning、forwarding,端口启用portfast特性后,会跳过listening、learning状态,节省30秒收敛时间。









QUESTION 6

Which two options are fields in an Ethernet frame? (Choose two)
以下哪两个选项是以太网帧中包含的字段?(选择两个)
A.   frame check sequence
B.   header
C.   source IP address
D.   destination IP address
E.   type

  Correct Answer: AE
解析:A:帧检查序列;E:类型
数据链路层传递的是数据帧,帧检验序列即 frame check sequence,让接收帧的网卡或接口判断是否发生了错误。
上层协议的类型。由于上层协议众多,所以在处理数据的时候必须设置该字段,标识数据交付哪个协议处理。例如,字段为 0x0800 时,表示将数据交付给 IP 协议。

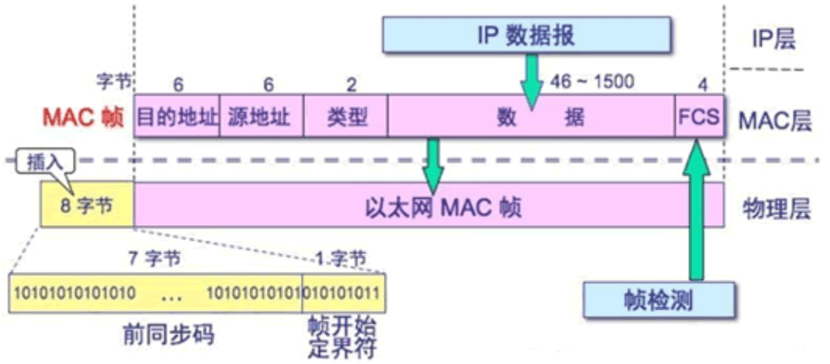

ps:以太网帧格式图

以太网帧格式图









QUESTION 7

Which two tasks can help you gather relevant facts when you troubleshoot a network problem? (Choose two)
当你需要进行网络故障定位时,以下哪两项任务可以帮助您收集相关信息? (选择两个)
A.   Ask questions of the users who are affected by the problem.
B.   Define the problem in terms of symptoms and causes.
C.   Collect technical data from network management systems and logging servers.
D.   Change one setting or component and then analyze the result.
E.   Eliminate known issues first.

  Correct Answer: AC
解析:A:向受问题影响的用户提问;C:从网络管理系统和日志服务器收集技术数据。



QUESTION 8

Which command should you use to display detailed information about EBGP peers?
您应该使用哪个命令来显示有关EBGP对等点的详细信息?
A.   show ip bgp summary
B.   show ip bgp neighbors
C.   show ip bgp
D.   show ip bgp paths

Correct Answer: A





QUESTION 9

What are two common types of copper cable? (Choose two)
两种常见的铜电缆是什么?(选择两个)
A.   OM4
B.   unshielded twisted pair
C.   single-mode
D.   shielded twisted pair
E.   multimode

  Correct Answer: BD
解析:B:非屏蔽双绞线 ;D:屏蔽双绞线
网络传输介质分类有线传输介质和无线传输介质两大类。有线传输介质主要有双绞线、同轴电缆和光纤。常见的有两种:非屏蔽双绞线(B)、屏蔽双绞线(D)









QUESTION 10

Which port status does the interface enter when UDLD detects a unidirectional link?
当UDLD检测到单向链路时,接口进入哪个端口状态?

UDLD检测到单向链路时,接口进入哪个端口状态?

A.   errdisable
B.   up/up
C.   down/down
D.  shutdown

Correct Answer: A
解析:A:禁用
单向链路检测(UDLD)是二层协议,用于检测光纤或铜缆以太网链路上的故障。在启用了UDLD的情况下,交换机会定期的向邻居发送UDLD协议数据包,并且期望在预设的计时器到期之前收到回应的数据包,如果交换机在邻居发送的数据包中看到了自己的信息,则认为链路是确定状态,如果没有看到,则认为是一条单向链路。如果计时器到期,那么交换机将该链路判断为单向链路,并且禁用该端口。
